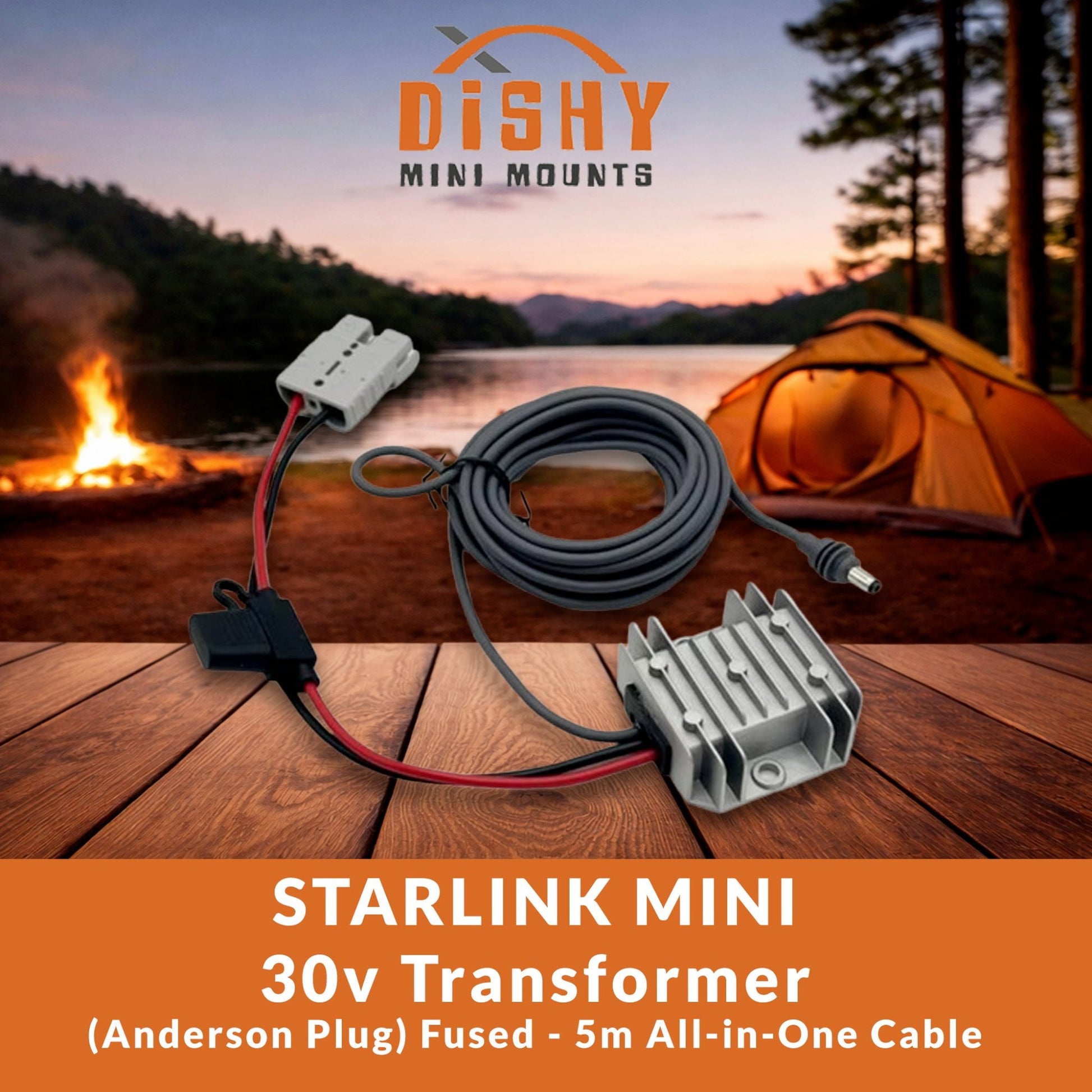

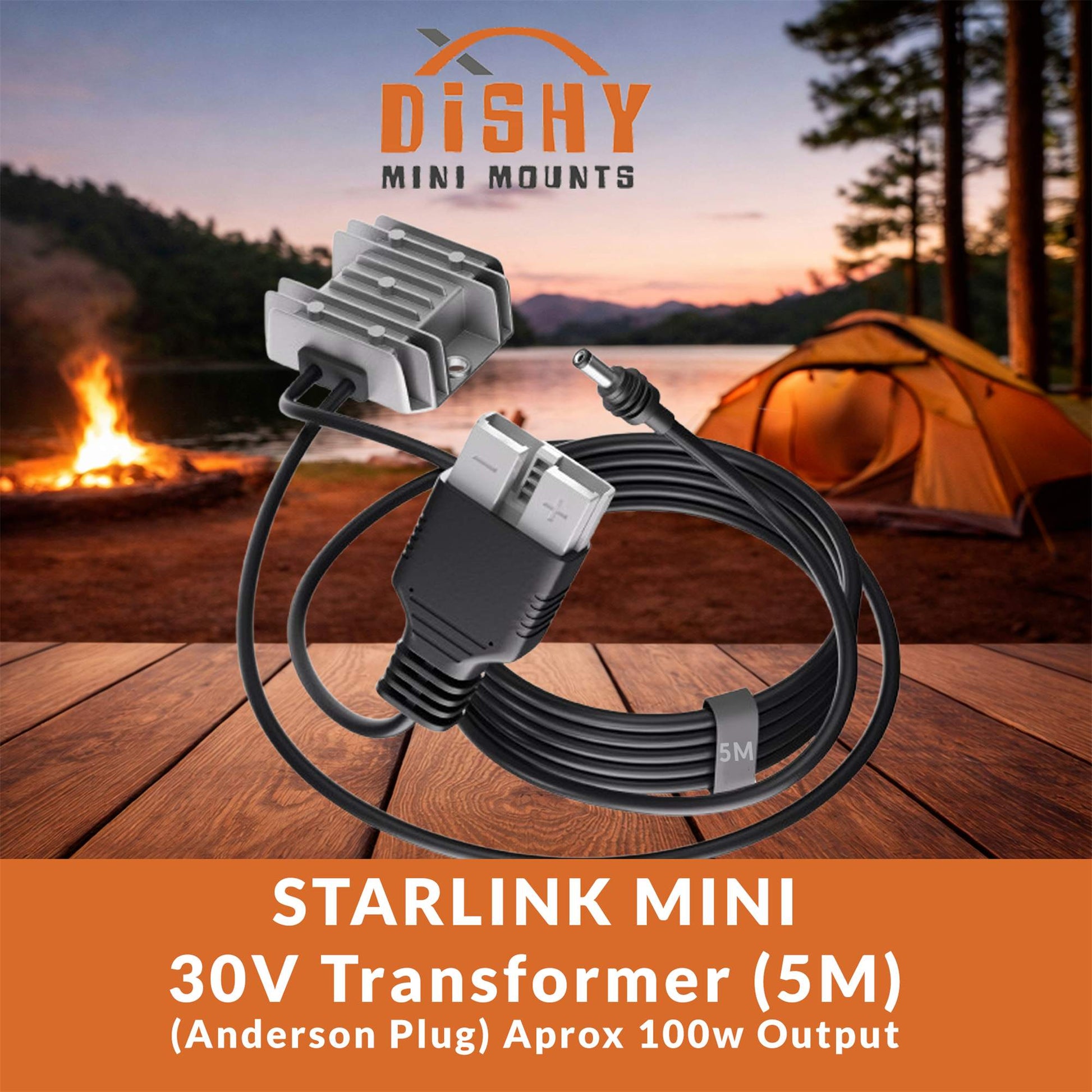

Starlink Mini 12V to 30V Step-Up Converter - Anderson Plug (5m Cable)

Starlink Mini 12V to 30V Step-Up Converter - Anderson Plug (5m Cable)

Connect your Starlink Mini to any Anderson-equipped battery system. Plug and play.
50A Anderson input with 5-metre output cable - converter stays inside, Starlink Mini goes outside.

This converter boosts your 12-24V battery supply to a rock-solid 30V output at 3.5A (105W), delivering exactly the voltage your Starlink Mini needs. The 5-metre output cable gives you serious reach - run the converter inside near your battery while your Starlink Mini sits on the roof, the bull bar, or out in the paddock.

Housed in an IP68-rated aluminium enclosure with an industrial-grade operating temperature range (-40 to 85°C), this converter is built for harsh Australian conditions. An inline fuse on the input lead protects your battery system, and the converter itself has overcurrent, overvoltage, overheating, and short-circuit protection built in.

Whether you're fitting out a caravan for touring, running Starlink on the tractor during harvest, or setting up internet at a remote camp - this is the converter that bridges your battery straight to reliable satellite internet.

✅ Key Features

🔌 50A Anderson Plug Input (30cm Lead)
Plugs straight into your existing caravan, camper, or battery box Anderson setup. No cutting, no crimping, no rewiring.

⚡ 30V 3.5A (105W) Output
Stable, precise voltage for reliable Starlink Mini operation.

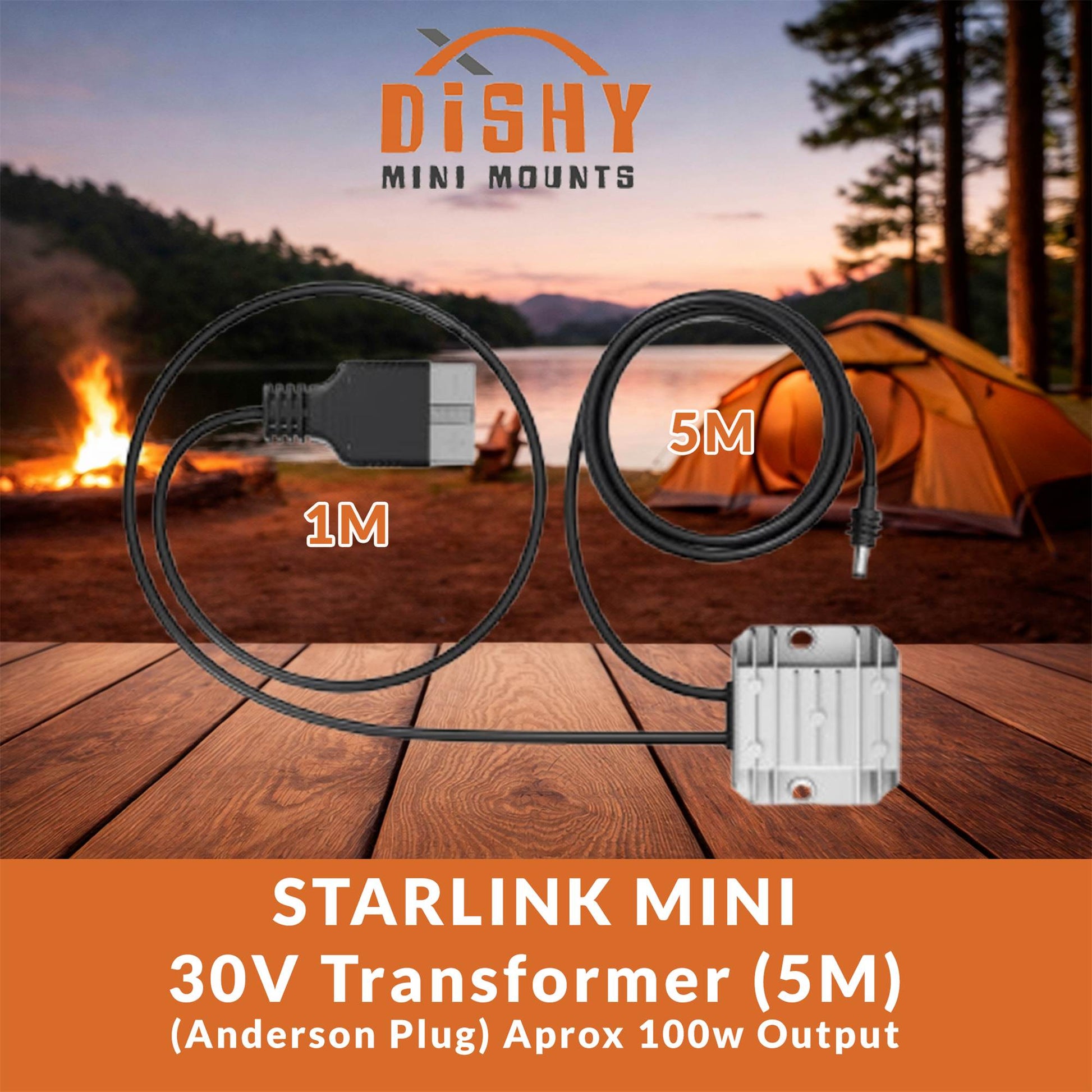

🔋 5-Metre Output Cable
Converter stays inside near your battery. Starlink Mini goes outside on the roof. Plenty of reach for most setups.

🛡️ IP68 Waterproof Aluminium Housing
Sealed for dust, rain, and harsh conditions. Built for the Australian bush.

🧱 >96% Conversion Efficiency
Industrial grade. Minimal heat loss, maximum runtime from your battery.

🔄 Inline Fuse + Multi-Protection
Overcurrent, overvoltage, overheating, and short-circuit protection. Inline fuse on the input lead protects your battery system.

🌡️ Industrial Temp Range
Operates from -40 to 85°C. From freezing alpine mornings to scorching outback afternoons.

📏 Anderson Step-Up Converter Range

Choose the cable length that suits your setup:

• 3m Cable - $90 - compact setups, short runs
• 5m Cable - $85 (this product) - great value, suits caravans and utes
• 7m Cable - $95 - our most popular, maximum reach for larger vehicles and trailers

Need to connect your battery to an Anderson plug first? Add our Anderson to Battery Terminal Cable for a complete battery-to-dish connection.

📦 What's Included

• 1x 12V to 30V Step-Up Converter with 50A Anderson plug input (30cm lead)
• 1x Integrated 5-metre DC5521 output cable
• 1x Pre-installed inline blade fuse

📋 Specifications

Input: 9-28V DC via 50A Anderson plug (30cm input lead)
Output: 30V DC, 3.5A (105W max)
Output Connector: DC5521 barrel jack (Starlink Mini compatible)
Output Cable Length: 5 metres
Input Lead Length: 30cm
Efficiency: >96%
Housing: Aluminium with silicone seal
IP Rating: IP68
Dimensions: 57.5 x 63.4 x 21mm (converter unit)
Weight: 390g
Operating Temp: -40 to 85°C
Fuse: Inline blade fuse on input lead
Protection: Overcurrent, overvoltage, overheating, short-circuit
Certifications: CE, FCC, RoHS
Mounting: 2x screw holes

Common Questions

Q: What Anderson plug does this use?
A: Standard 50A grey Anderson plug - the same connector used in most caravan, camper, and battery box setups across Australia.

Q: Can I extend the output cable?
A: The 5-metre output cable connects directly to your Starlink Mini. If you need more reach, consider our 7m Anderson converter - it's our most popular model.

Q: Why is the 5m cheaper than the 3m?
A: Different supplier - same quality, better value. We pass the savings on.

Not sure which cable you need? Check out our Cable Selection Guide or download the Quick Reference PDF.
