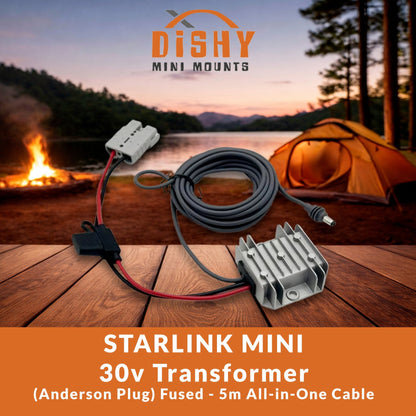

Starlink Mini 12V to 30V Step-Up Converter — Anderson Plug (5m Cable, Inline Fuse)

Run your Starlink Mini from any Anderson-equipped battery system — caravan, camper trailer, or battery box

Plug straight into your existing Anderson battery system and power your Starlink Mini reliably. This step-up converter boosts 12–24V input to a steady 30V output — enough to start and run your dish even when the engine is off. The 5-metre integrated cable gives you plenty of reach from your battery box or Anderson outlet to wherever you've mounted the dish.

Why Anderson?

If your vehicle, caravan, or camper trailer already has Anderson plug outlets wired to the auxiliary battery — this is the simplest path to Starlink power. No splicing, no adapters, no extra cables. Plug the Anderson connector into your outlet, run the cable to your dish, and you're online.

The converter handles the voltage conversion automatically. Your 12V battery system provides the input, the converter steps it up to 30V, and the DC5521 barrel jack plugs directly into the Starlink Mini's power port. IP68 waterproof housing means the converter unit can sit outside near your battery without worrying about rain, dust, or condensation.

Add our Anderson to Battery Terminal Cable for a complete battery-to-dish connection.

📦 What's Included

• 1x 12V to 30V Step-Up Converter with 50A Anderson plug input (30cm lead)
• 1x Integrated 5-metre DC5521 output cable
• 1x Pre-installed inline blade fuse

📋 Specifications

Input: 9-28V DC via 50A Anderson plug (30cm input lead)
Output: 30V DC, 3.5A (105W max)
Output Connector: DC5521 barrel jack (Starlink Mini compatible)
Output Cable Length: 5 metres
Input Lead Length: 30cm
Efficiency: >96%
Housing: Aluminium with silicone seal
IP Rating: IP68
Dimensions: 57.5 x 63.4 x 21mm (converter unit)
Weight: 315g
Operating Temp: -40 to 85°C
Fuse: Inline blade fuse on input lead
Protection: Overcurrent, overvoltage, overheating, short-circuit
Certifications: CE, FCC, RoHS
Mounting: 2x screw holes

Common Questions

Q: What Anderson plug does this use?
A: Standard 50A grey Anderson plug - the same connector used in most caravan, camper, and battery box setups across Australia.

Q: Can I extend the output cable?
A: The 5-metre output cable connects directly to your Starlink Mini. If you need more reach, consider our 7m Anderson converter instead.
