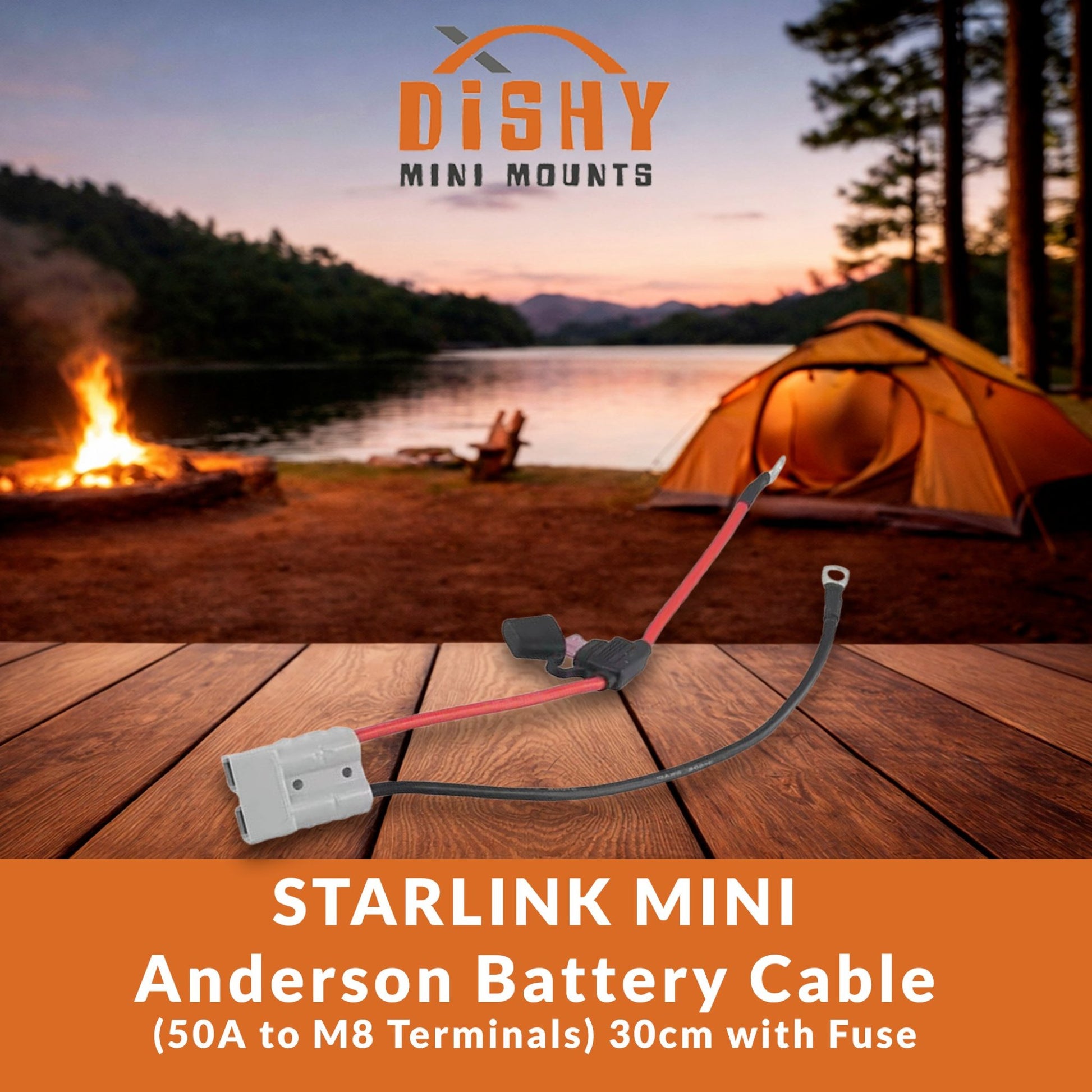

Starlink Mini - 50A Anderson Plug to Battery Terminal Cable (30cm)

Starlink Mini - 50A Anderson Plug to Battery Terminal Cable (30cm)

Connect your 12V battery system to your Starlink Mini power setup in seconds.
The missing link between your battery and your Anderson-terminated DC cable or step-up converter.

Built with 10AWG copper wire and fitted with silver-plated M8 ring terminals, this 30cm cable handles serious current while keeping resistance low. The integrated inline 10A fuse with weatherproof rubber seal protects your Starlink Mini from overcurrent while keeping moisture out of the fuse holder in tough conditions.

Perfect for caravan, camper trailer, and 4WD battery box installations. Connect the M8 lugs directly to your battery terminals or bus bar, then plug your Anderson DC cable or step-up converter straight in. If you're running Starlink Mini off a secondary battery in the shed, on the tractor, or at a remote camp - this cable gets you connected safely and quickly.

✅ Key Features

🔌 50A Anderson Plug
Standard grey connector, compatible with all Anderson-terminated DMM cables and step-up converters.

🔋 M8 Silver-Plated Ring Terminals
Secure connection to battery posts or bus bars. Silver plating reduces resistance and prevents corrosion.

🛡️ Inline 10A Fuse with Weatherproof Seal
Built-in overcurrent protection with a rubber seal on the fuse holder to keep moisture out. Standard automotive blade fuse - easy to replace.

⚡ 10AWG Heavy-Duty Copper Wire
Low resistance, high current capacity. Built for the demands of 12V power systems.

🧱 Compact 30cm Length
Short, tidy connection from battery to Anderson plug. No excess cable to manage in tight battery boxes.

💰 Pairs Perfectly With

This cable connects your battery to an Anderson plug. You then need an Anderson-terminated cable or converter to reach your Starlink Mini:

✅ 12V to 30V Step-Up Converter - Anderson (3m)
✅ 12V to 30V Step-Up Converter - Anderson (5m)
✅ 12V to 30V Step-Up Converter - Anderson (7m)

📦 What's Included

• 1x 50A Anderson Plug to Battery Terminal Cable (30cm)
• 1x Pre-installed 10A inline blade fuse with weatherproof rubber seal

📋 Specifications

Connector A: 50A Anderson Plug (grey)
Connector B: 2x M8 Ring Terminal (silver-plated)
Cable: 10AWG (2.5mm²), PVC + Copper
Length: 300mm (30cm)
Fuse: Inline 10A blade fuse with weatherproof rubber seal
Current Rating: 50A (connector) / 10A (fused)
Voltage Rating: 1000V DC nominal
Weight: 84g
Operating Temp: -40 to 125°C

Common Questions

Q: What else do I need to connect this to my Starlink Mini?
A: This cable connects your battery to an Anderson plug. You then need an Anderson-terminated DC cable or step-up converter to complete the connection to your Starlink Mini. Check out our Anderson cable range for compatible options.

Q: Will this work with my caravan battery box?
A: Yes - the M8 ring terminals fit standard battery posts and bus bars found in most caravan and camper trailer battery systems.

Q: Is the fuse replaceable?
A: Yes - it uses a standard automotive blade fuse. Easy to swap if needed, and spares are available from any auto parts store.

Not sure which cable you need? Check out our Cable Selection Guide or download the Quick Reference PDF.
